1. Topic 1, Litware. Inc Case Study 1



Overview

Litware. Inc. is a financial company that has a main datacenter in Boston and 20 branch offices across the United States. Users have Android, iOS, and Windows 10 devices.



Existing Environment:

Hybrid Environment

The on-prernises network contains an Active Directory forest named litwareinc.com that syncs to an Azure Active Directory (Azure AD) tenant named litwareinc.com by usinq Azure AD Connect.

All the offices connect to a virtual network named Vnetl by using a Site-to-Site VPN connection.



Azure Environment

Litware has an Azure subscription named Sub1 that is linked to the litwareinc.com Azure AD tenant.

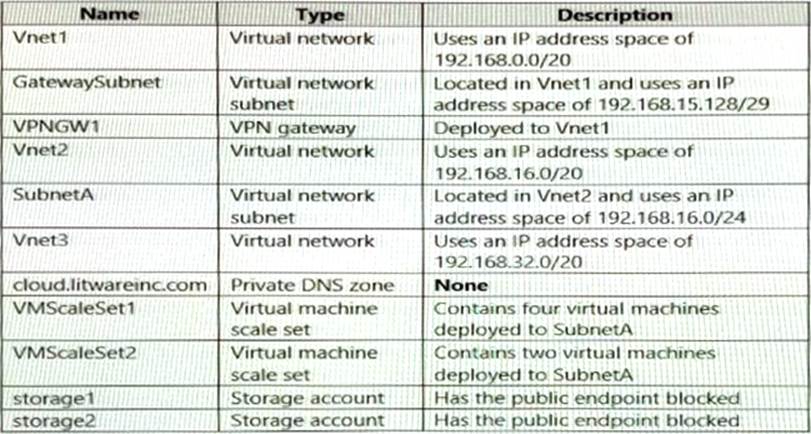

Sub1 contains resources in the East US Azure region as shown in the following table.







There is bidirectional peering between Vnet1 and Vnet2. There is bidirectional peering between Vnet1 and Vnet3. Currently, Vnet2 and Vnet3 cannot communicate directly.



Requirements:

Business Requirements

Litware wants to minimize costs whenever possible, as long as all other requirements are met.



Virtual Networking Requirements

Litware identifies the following virtual networking requirements:

* Direct the default route of 0.0.0.0/0 on Vnet2 and Vnet3 to the Boston datacenter over an ExpressRoute circuit.

* Ensure that the records in the cloud.litwareinc.com zone can be resolved from the on-premises locations.

* Automatically register the DNS names of Azure virtual machines to the cloud.litwareinc.com zone.

* Minimize the size of the subnets allocated to platform-managed services.

* Allow traffic from VMScaleSet1 to VMScaleSet2 on the TCP port 443 only.



Hybrid Networking Requirements

Litware identifies the following hybrid networking requirements:

* Users must be able to connect to Vnet1 by using a Point-to-Site (P2S) VPN when working remotely. Connections must be authenticated by Azure AD.

* Latency of the traffic between the Boston datacenter and all the virtual networks must be minimized.

* The Boston datacenter must connect to the Azure virtual networks by using an ExpressRoute FastPath connection.

* Traffic between Vnet2 and Vnet3 must be routed through Vnet1.



PaaS Networking Requirements

Litware identifies the following networking requirements for platform as a service (PaaS):

* The storage1 account must be accessible from all on-premises locations without exposing the public endpoint of storage1.

* The storage2 account must be accessible from Vnet2 and Vnet3 without exposing the public endpoint of storage2.



HOTSPOT

You need to implement a P2S VPN for the users in the branch office. The solution must meet the hybrid networking requirements.

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

2. DRAG DROP

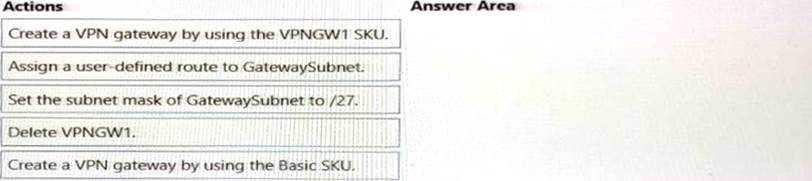

You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements.

Which three actions should you perform in sequence for Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

3. You need to provide connectivity to storage1. The solution must meet the PaaS networking requirements and the business requirements.

What should you include in the solution?

4. You need to connect Vnet2 and Vnet3. The solution must meet the virtual networking requirements and the business requirements.

Which two actions should you include in the solution? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

5. HOTSPOT

You create NSG10 and NSG11 to meet the network security requirements.

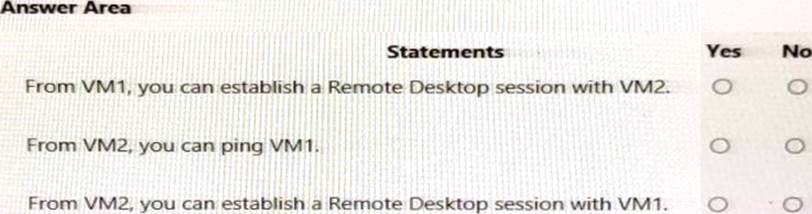

For each of the following statements, select Yes it the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

6. HOTSPOT

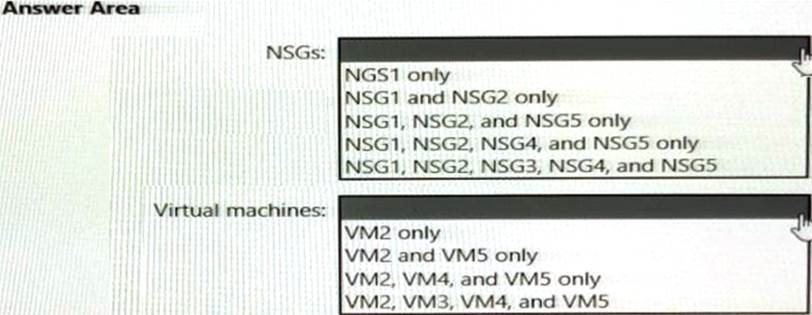

In which NSGs can you use ASG1 and to which virtual machine network interfaces can you associate ASG1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

7. What should you implement to meet the virtual network requirements for the virtual machines that connect to Vnet4 and Vnet5?

8. CORRECT TEXT

You are implementing the Virtual network requirements for Vnet6.

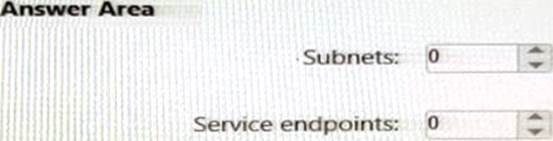

What is the minimum number of subnets and service endpoints you should create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

9. HOTSPOT

You are implementing the virtual network requirements for VM Analyze.

What should you include in a custom route that is linked to Subnet2? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

10. HOTSPOT

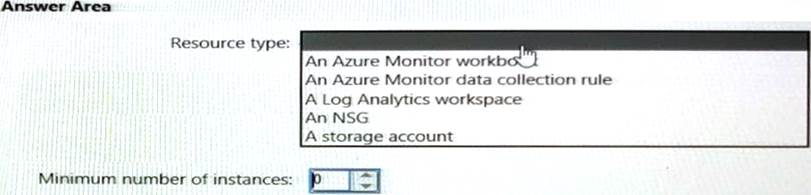

You need to meet the network security requirements for the NSG flow logs.

Which type of resource do you need, and how many instances should you create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
