Updated AZ-220 Practice Test Are Available [3-9-2022] Quick Tips To Pass

1. You have an Azure IoT hub that receives messages from an IoT device. The messages are serialized as Protobuf.

You need the IoT hub to route the messages.

What should you do first?

2. You develop a custom Azure IoT Edge module named temperature-module.

You publish temperature-module to a private container registry named mycr.azurecr.io.

You need to build a deployment manifest for the IoT Edge device that will run temperature-module.

Which three container images should you define in the manifest? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

3. You have three Azure IoT hubs named Hub1, Hub2, and Hub3, a Device Provisioning Service instance, and an IoT device named Device1.

Each IoT hub is deployed to a separate Azure region. Device enrollment uses the Lowest latency allocation policy.

The Device Provisioning Service uses the Lowest latency allocation policy. Device1 is auto-provisioned to Hub1 by using the Device Provisioning Service. Device1 regularly moves between regions.

You need to ensure that Device1 always connects to the IoT hub that has the lowest latency .

What should you do?

4. You have an Azure IoT hub that is being taken from prototype to production.

You plan to connect IoT devices to the IoT hub. The devices have hardware security modules (HSMs). You need to use the most secure authentication method between the devices and the IoT hub. Company

policy prohibits the use of internally generated certificates.

Which authentication method should you use?

5. You are troubleshooting an Azure IoT hub.

You discover that some telemetry messages are dropped before they reach downstream processing. You suspect that IoT Hub throttling is the root cause.

Which log in the Diagnostics settings of the IoT hub should you use to capture the throttling error events?

6. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have devices that connect to an Azure IoT hub. Each device has a fixed GPS location that includes latitude and longitude.

You discover that a device entry in the identity registry of the IoT hub is missing the GPS location.

You need to configure the GPS location for the device entry. The solution must prevent the changes from being propagated to the physical device.

Solution: You use an Azure policy to apply tags to a resource group. Does the solution meet the goal?

7. You have an Azure IoT solution that includes an Azure IoT hub and 100 Azure IoT Edge devices.

You plan to deploy the IoT Edge devices to external networks. The firewalls of the external networks only allow traffic on port 80 and port 443.

You need to ensure that the devices can connect to the IoT hub. The solution must minimize costs.

What should you do?

8. You have 100 devices that connect to an Azure IoT hub.

You plan to use Azure functions to process all the telemetry messages from the devices before storing the messages.

You need to configure the functions binding for the IoT hub.

Which two configuration details should you use to configure the binding? Each Answer presents part of the solution. NOTE: Each correct selection is worth one point.

9. You have 10 IoT devices that connect to an Azure IoT hub named Hub1.

From Azure Cloud Shell, you run az iot hub monitor-events --hub-name Hub1 and receive the following error message: "az iot hub: 'monitor-events' is not in the 'az iot hub' command group. See 'az iot hub --help'."

You need to ensure that you can run the command successfully .

What should you run first?

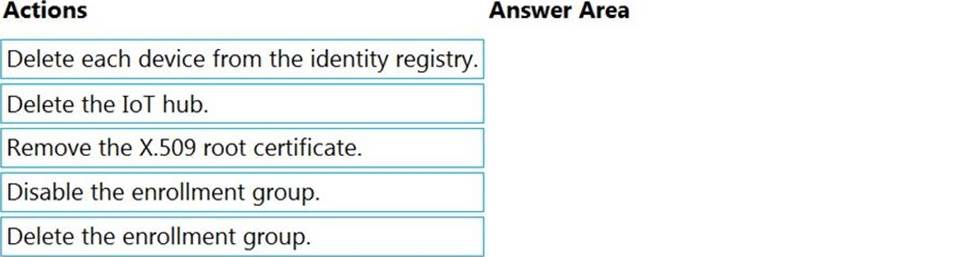

10. DRAG DROP

You have an Azure IoT solution that includes an Azure IoT hub, a Device Provisioning Service instance, and 1,000 connected IoT devices. The IoT devices are allocated to tour enrollment groups. Each enrollment group is configured to use certificate attestation.

You need to decommission all the devices in a single enrollment group and the enrollment group itself.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

11. HOTSPOT

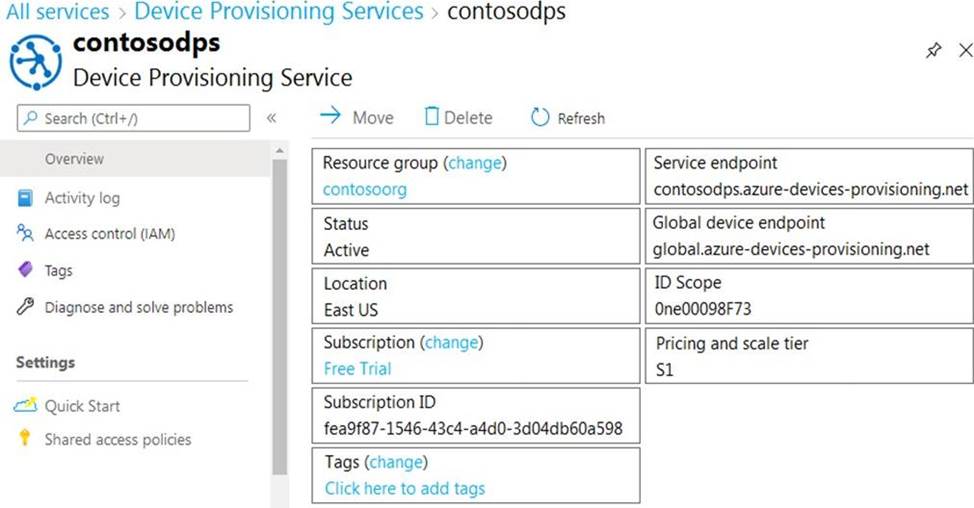

You are writing code to provision IoT devices by using the Device Provisioning Service.

Which two details from the Overview blade of the Device Provisioning Service are required to provision a new IoT client device? To answer, select the appropriate detail in the answer area. NOTE: Each correct selection is worth one point.

12. You need to enable telemetry message tracing through the entire IoT solution.

What should you do?

13. You have an IoT device that gathers data in a CSV file named Sensors.csv.

You deploy an Azure IoT hub that is accessible at ContosoHub.azure-devices.net. You need to ensure that Sensors.csv is uploaded to the IoT hub.

Which two actions should you perform? Each correct answer presents part of the solution.

14. You have an Azure IoT hub that uses a Device Provisioning Service instance.

You have 1,000 legacy IoT devices that only support MAC address or serial number

identities. The device do NOT have a security feature that can be used to securely identify the device or a hardware security module (HSM).

You plan to deploy the devices to a secure environment.

You need to configure the Device Provisioning Service instance to ensure that all the devices are identified securely before they receive updates.

Which attestation mechanism should you choose?

15. What should you do to identify the cause of the connectivity issues?

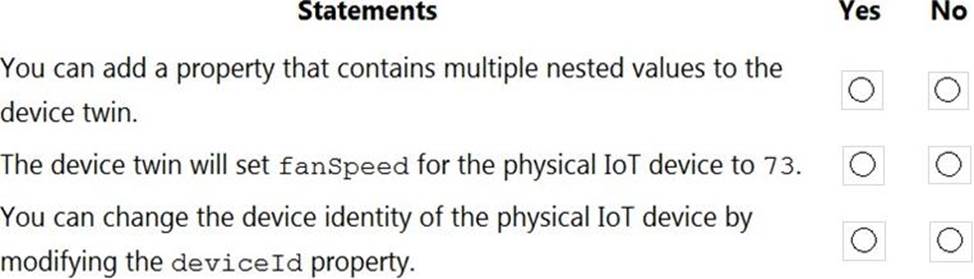

16. HOTSPOT

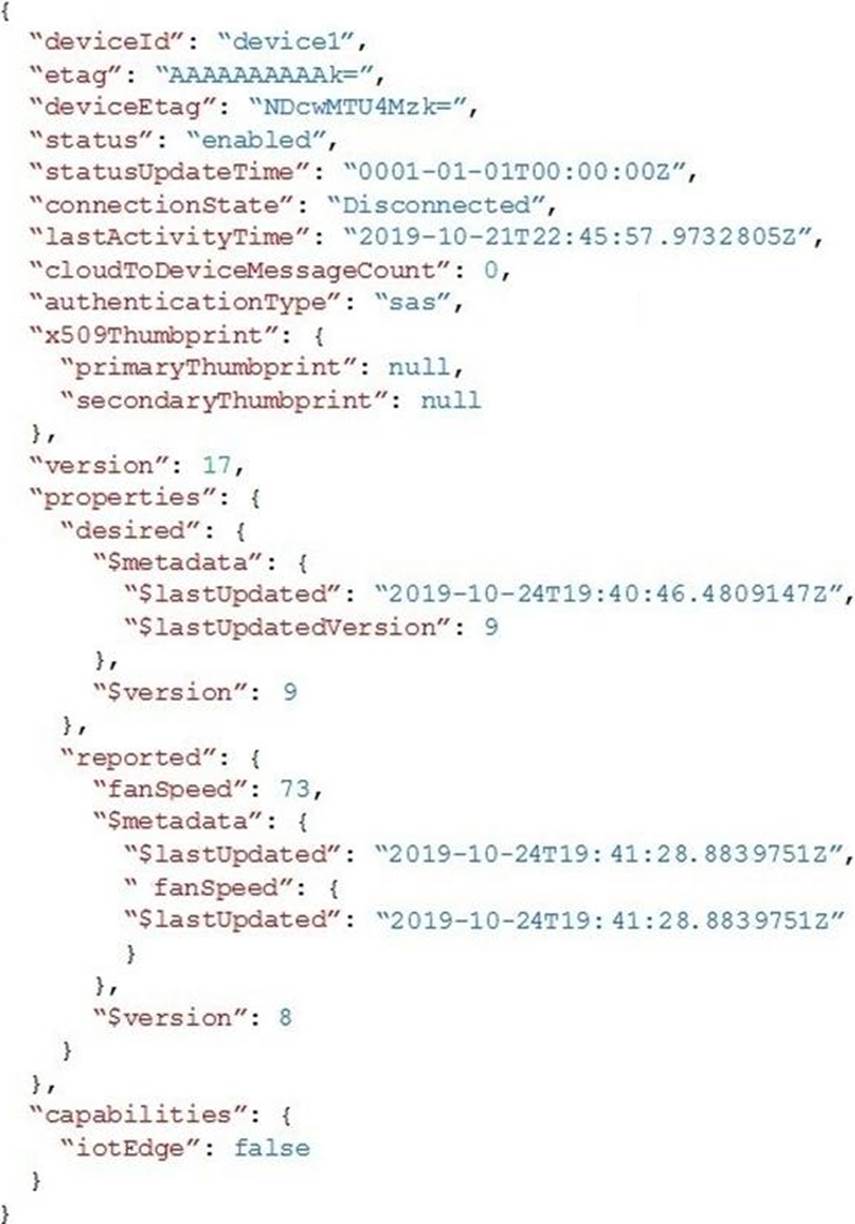

You have the following device twin for the IoT device.





For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

17. You have an Azure IoT solution that includes an Azure IoT hub and 100 Azure IoT Edge devices.

You plan to deploy the IoT Edge devices to external networks. The firewalls of the external networks only allow traffic on port 80 and port 443.

You need to ensure that the devices can connect to the IoT hub. The solution must minimize costs .

What should you do?
